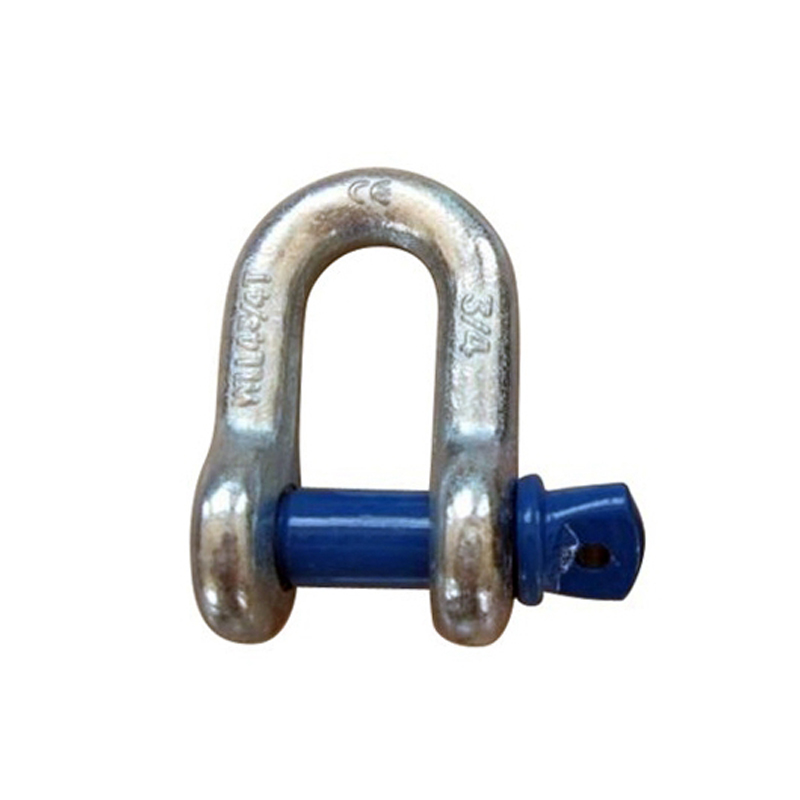

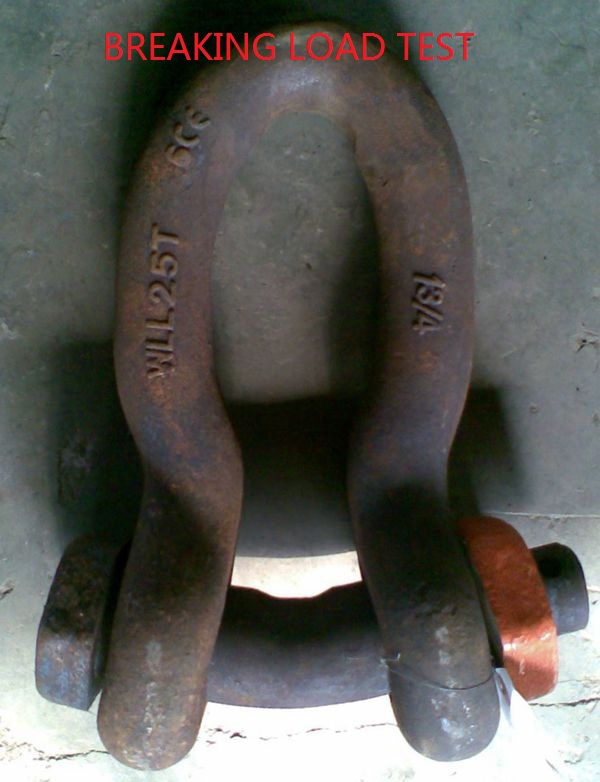

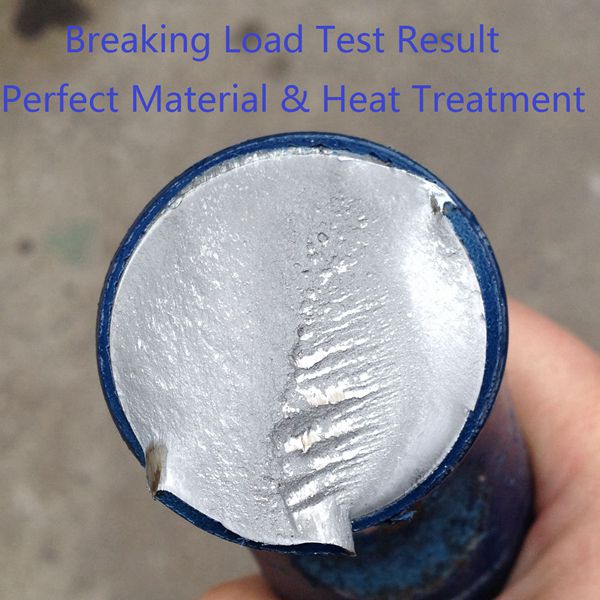

US TYPE SHACKLE G210
- PRODUCT DETAIL
| Size | WLL | Dimensions(mm) | N.W. | |||||||||
| (in.) | (Tonne) | A | B | C | D | E | F | G | H | I | M | (kg) |
| 1/4 | 1/2 | 11.9 | 7.85 | 6.35 | 6.35 | 24.6 | 15.5 | 22.4 | 40.4 | 4.85 | 35.1 | 0.05 |
| 5/16 | 3/4 | 13.5 | 9.65 | 7.85 | 7.85 | 29.5 | 19.1 | 26.2 | 48.5 | 5.6 | 42.2 | 0.08 |
| 3/8 | 1 | 16.8 | 11.2 | 9.65 | 9.65 | 35.8 | 23.1 | 31.8 | 58.5 | 6.35 | 51.5 | 0.13 |
| 7/16 | 1 1/2 | 19.1 | 12.7 | 11.2 | 11.2 | 41.4 | 26.9 | 36.6 | 67.5 | 7.85 | 60.5 | 0.2 |
| 1/2 | 2 | 20.6 | 16 | 12.7 | 12.7 | 46 | 30.2 | 41.4 | 77 | 9.65 | 68.5 | 0.27 |
| 5/8 | 3 1/4 | 26.9 | 19.1 | 15.7 | 16 | 58.5 | 38.1 | 51 | 95.5 | 11.2 | 85 | 0.57 |
| 3/4 | 4 3/4 | 31.8 | 22.4 | 20.6 | 19.1 | 70 | 46 | 60.5 | 115 | 12.7 | 101 | 1.2 |
| 7/8 | 6 1/2 | 36.6 | 25.4 | 24.6 | 22.4 | 81 | 53 | 71.5 | 135 | 12.7 | 114 | 1.43 |
| 1 | 8 1/2 | 42.9 | 28.7 | 25.4 | 25.4 | 93.5 | 60.5 | 81 | 151 | 14.2 | 129 | 2.15 |
| 1 1/8 | 9 1/2 | 46 | 31.8 | 31.8 | 28.7 | 103 | 68.5 | 91 | 172 | 16 | 142 | 3.06 |
| 1 1/4 | 12 | 51.5 | 35.1 | 35.1 | 31.8 | 115 | 76 | 100 | 191 | 17.5 | 156 | 4.11 |
| 1 3/8 | 13 1/2 | 57 | 38.1 | 38.1 | 35.1 | 127 | 84 | 111 | 210 | 19.1 | 174 | 5.28 |
| 1 1/2 | 17 | 60.5 | 41.4 | 41.1 | 38.1 | 137 | 92 | 122 | 230 | 20.6 | 187 | 7.23 |
| 1 3/4 | 25 | 73 | 51 | 54 | 44.5 | 162 | 106 | 146 | 279 | 25.4 | 231 | 12.1 |
| 2 | 35 | 82.5 | 57 | 51 | 51 | 184 | 122 | 172 | 312 | 31 | 263 | 19.2 |
| 2 1/2 | 55 | 105 | 70 | 66.5 | 66.5 | 238 | 145 | 203 | 377 | 35.1 | 330 | 32.5 |
